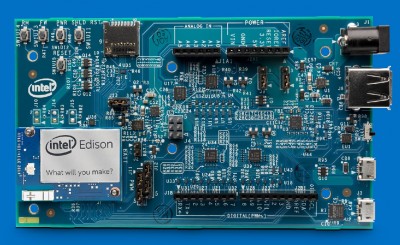

Intel Dev kitIntel® Edison Compute Module and Arduino® Breakout Board

Intel® Edison compute module with the Arduino breakout board is a fully open source hardware and software development environment for your maker projects. The high performance, dual-core CPU and single core micro-controller supports complex data collection in a low power package. The integrated Wi-Fi, Bluetooth Low Energy, memory, and storage simplifies configuration and increases scalability. The board contains 40 multiplexed GPIO interfaces with expansion board options for total project design and flexibility.

Benefit from a supportive environment which provides managed online community for project ideas and engagement with other project users. The community contains Intel® product expert support and open source community software tools. Finally there is access to device-to-device and device-to-cloud connectivity framework to enable cross device communication and a cloud based, multi-tenant, time-series analytics service.

Features

  • Edison
    • Intel® Atom™ system-on-a-chip (SoC) based on leading-edge 22 nm Silvermont microarchitecture including a dual-core CPU and single core microcontroller (MCU)
    • Integrated Wi-Fi, Bluetooth LE, memory, and storage
    • Support for more than 30 industry-standard I/O interfaces via a 70-pin connector
    • Support for Yocto Linux, Arduino, Python, Node.js, and Wolfram
    • Open source community software tools enabling ease of adoption and inspiring third-party app developers to build apps for consumers.
    • EDI1.SPON.AL.S (System-On-Modules – SOM Edison Module IoT Internal Antenna)
  • Breakout
    • 4 PWM
    • 20 digital input/output pins including 4 pins as PWM outputs
    • 6 analog inputs
    • 1 UART (RX/TX)
    • 1 I2C
    • 1 ICSP 6-pin header (SPI)
    • Micro USB device connector OR (via mechanical switch) dedicated standard size USB host Type-A connector
    • Micro USB device (connected to UART)
    • SD Card connector
    • DC power jack (7V – 15V DC input @ 500mA)
