STMicroelectronics Development Kit

ST dev kit

ST Development Kit



The shipping address for this development kit is restricted to the United States.


Overview

The economical STM32 Nucleo boards allow fast experimentation and learning and a quick path to prototypes with any STM32 MCU.

Sharing Arduino connectors and ST Morpho headers, STM32 Nucleo boards are compatible with many application-related hardware add-ons and come with an integrated ST-Link debugger/programmer, so there is no need for an external probe. Demonstrating the breadth of the development ecosystem, the boards work with a wide range of development environments including IAR EWARM, Keil MDK, mbed, and GCC-based IDEs.

In addition to the free tools available on ST.com, STM32 Nucleo users also have free access to the mbed online compiler, the mbed online C/C++ SDK, and the developer community at mbed.org, which taken together, support the ability to build a complete application in just a few minutes.

More information are available at www.st.com/stm32nucleo

Key Features

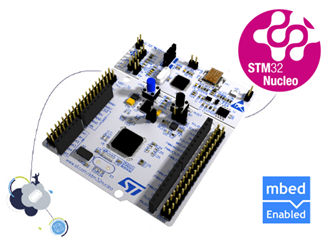

While there are several STM32 Nucleo boards, one, the NUCLEO-F411RE board, has the following key features

  • STM32 F411 microcontroller with LQFP64 package
  • Two types of extension resources
  • Arduino Uno Revision 3 connectivity
  • ST Morpho extension pin headers for full access to all STM32 I/Os
  • mbed-enabled (mbed.org)
  • On-board ST-LINK/V2-1 debugger/programmer with SWD connector
  • selection-mode switch to use the kit as a standalone ST-LINK/V2-1
  • Flexible board power supply
  • USB VBUS or external source(3.3V, 5V, 7 – 12V)
  • Power-management access point
  • Three LEDs
  • USB communication (LD1), user LED (LD2), power LED (LD3)
  • Two push buttons: USER and RESET
  • USB re-enumeration capability: three different interfaces supported on USB
  • Virtual Com port
  • Mass storage
  • Debug port
  • Supported by wide choice of Integrated Development Environments (IDEs) including IAR™, Keil®, and GCC-based IDEs.

Available Expansion Boards

  • STM32 Nucleo expansion boards from ST, to build STM32-based applications leveraging functionality and performance of ST’s device portfolio (connectivity, sensors, motor control, etc…). See details at st.com/x-nucleo
  • The Arduino™ connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields

What’s included in the development kit:

  • 1 STM32 Nucleo development board for STM32 F4 series (NUCLEO-F411RE).
  • 1 expansion board providing Wi-Fi connectivity (AMW006-A02).
  • 1 expansion board with MEMS and environmental sensors (X-NUCLEO-IKS01A1).

Detailed information on how to get started with the development kit is available at www.stm32hackathon.com
